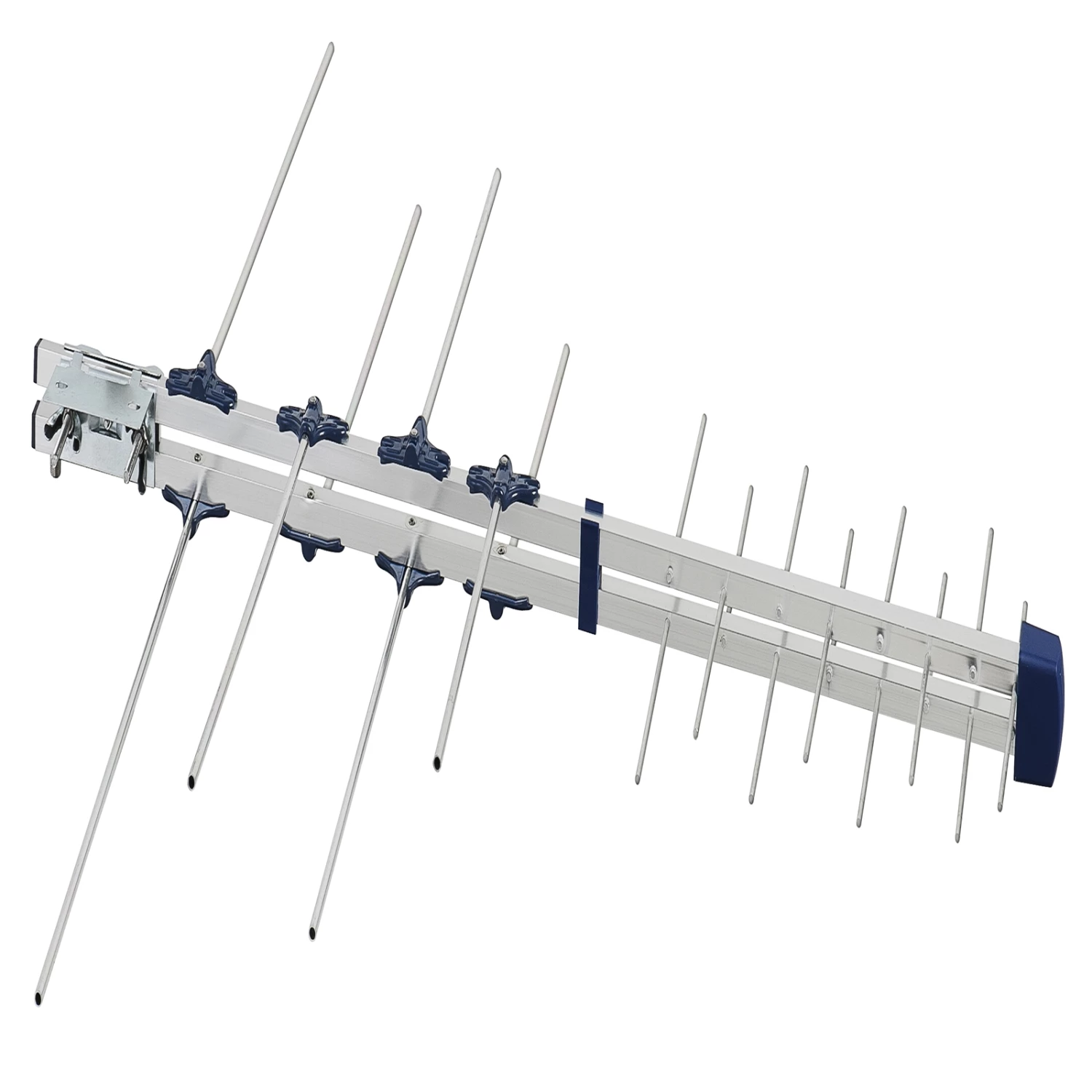

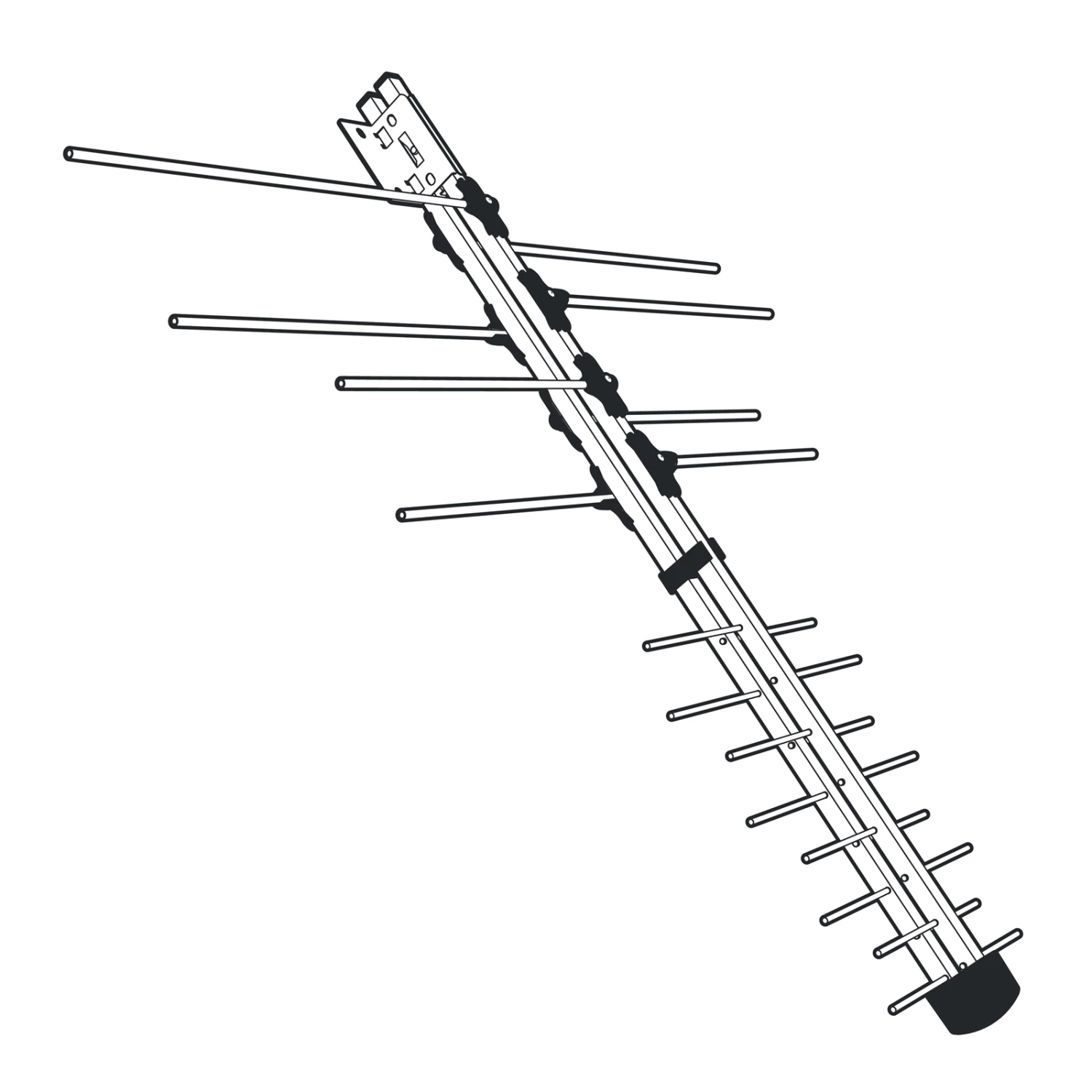

Small, compact and lightweight, this antenna is great value for metro prime reception areas. Easy to install with a “fold out” system; the tubular elements are fixed using industrial riveting methods for sustained durability.
This antenna has been designed to use a high magnesium content Aluminium alloy, for a stronger, yet lighter antenna, and the use of UV stabilised plastics for the element brackets and Balun housing.
The antenna gives approximately 6dB of signal gain, with >3.5dB in gain variation over the operating frequency range. It offers a beamwidth of 65deg for VHF and 37deg for UHF, with a min return loss of -5dB for VHF and -8dB for UHF.
- Smaller elements are fixed for added reliability

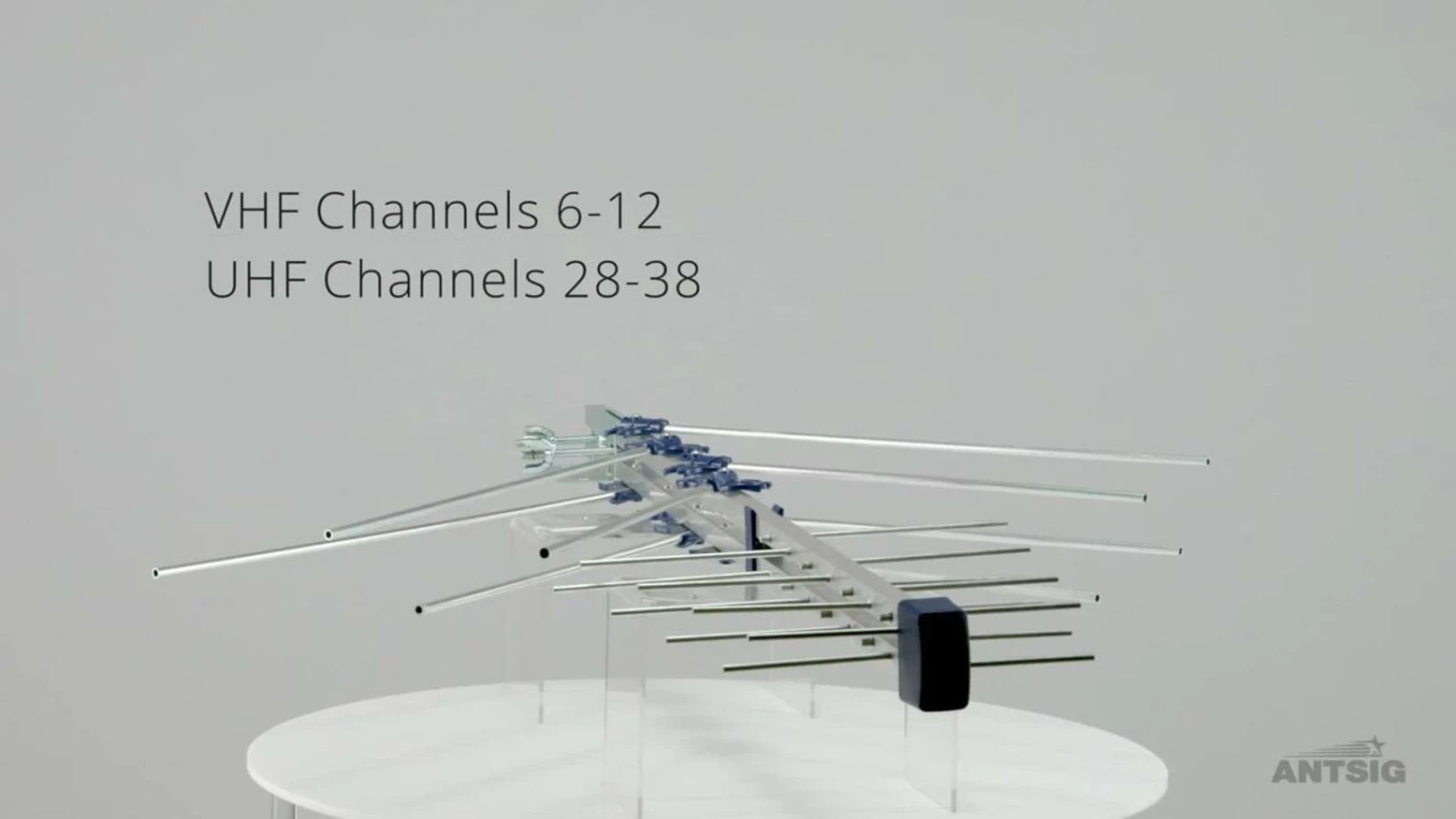

- VHF operating frequency range:170-230MHz
- Suitable for all HD, Full HD and 3D TV and more
- UHF operating frequency range:518-603MHz
- Suitable for DAB+ digital radio
Specifications
- Colour: Aluminium
- Model Name: Prime Digital Outdoor Antenna – Metro
- Model Number: AA1100
- Material: Aluminium Alloy
- Pole Mount: Yes
- Cross Polarised: No
- Prima: Yes
- Regional: No
- FM: No
- Combo: Yes
- Fringe: No
- Indoor Use (Yes/No): No
- Digital (Yes/No): Yes
- Medium: No
- Reception Amplified: No
- Outdoor Use (Yes/No): Yes
- Active Amplified: No
- High Definition Compatible: Yes
- UHF: Yes
- VHF: Yes
- Caravan: Yes
- VHF/UFH (Yes/No): Yes
- Metro: Yes
- Antenna Gain (dB): 6
